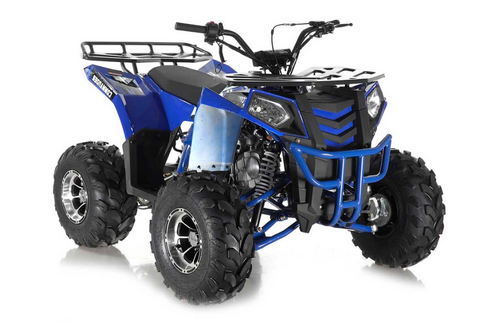

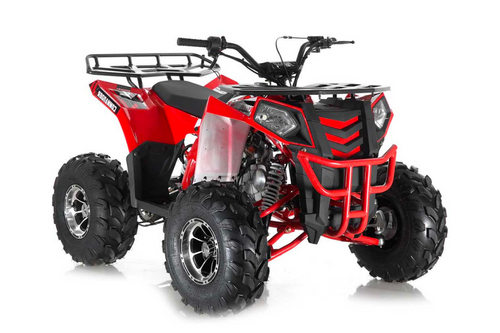

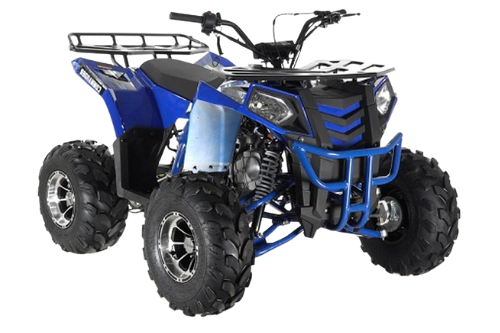

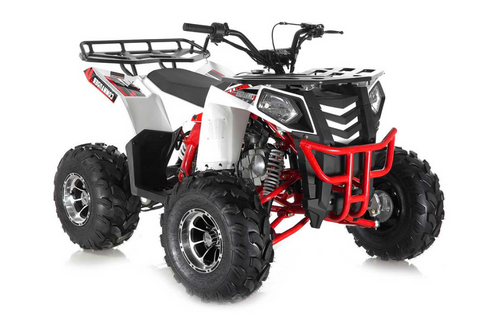

Commander 125 DLX

Intended User Age: G16 (16 – up)
Engine: 4-stroke, single cylinder, OHC
Displacement: 125cc
Cooling: Air cooled
Max speed: 30 mph
Ignition: CDI
Starting system: Electric
Battery: 12V/5Ah
Engine oil: SAE15W/40SF
Transmission: Auto with reverse
Driveline: Chain
Driving wheel: Rear wheel drive
Brakes (front/rear): Drum / Disc
Brake operation (front/rear): Hand / Foot
Tires (front/rear): 19×7-8 / 18×9.5-8
Fuel capacity: 2.3 L
Net Weight: 264.5 lbs.
Gross Weight: 319.7 lbs.
Max Load: 223 lbs.
Wheelbase: 44.1 inches
Height to seat: 37.4 inches
Min ground clearance: 3.2 inches

Dimensions
